X Rails and Z Motor Plate

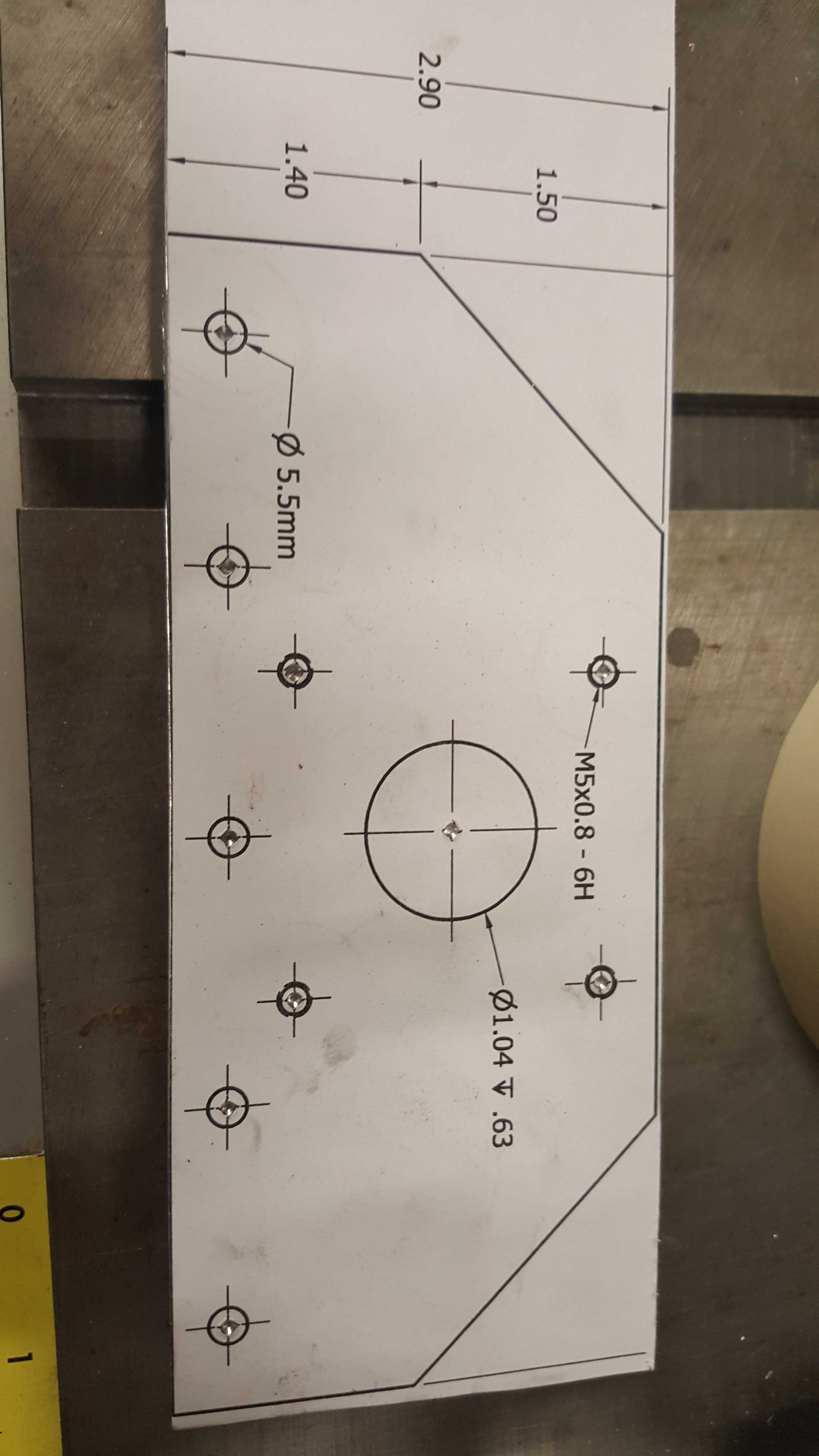

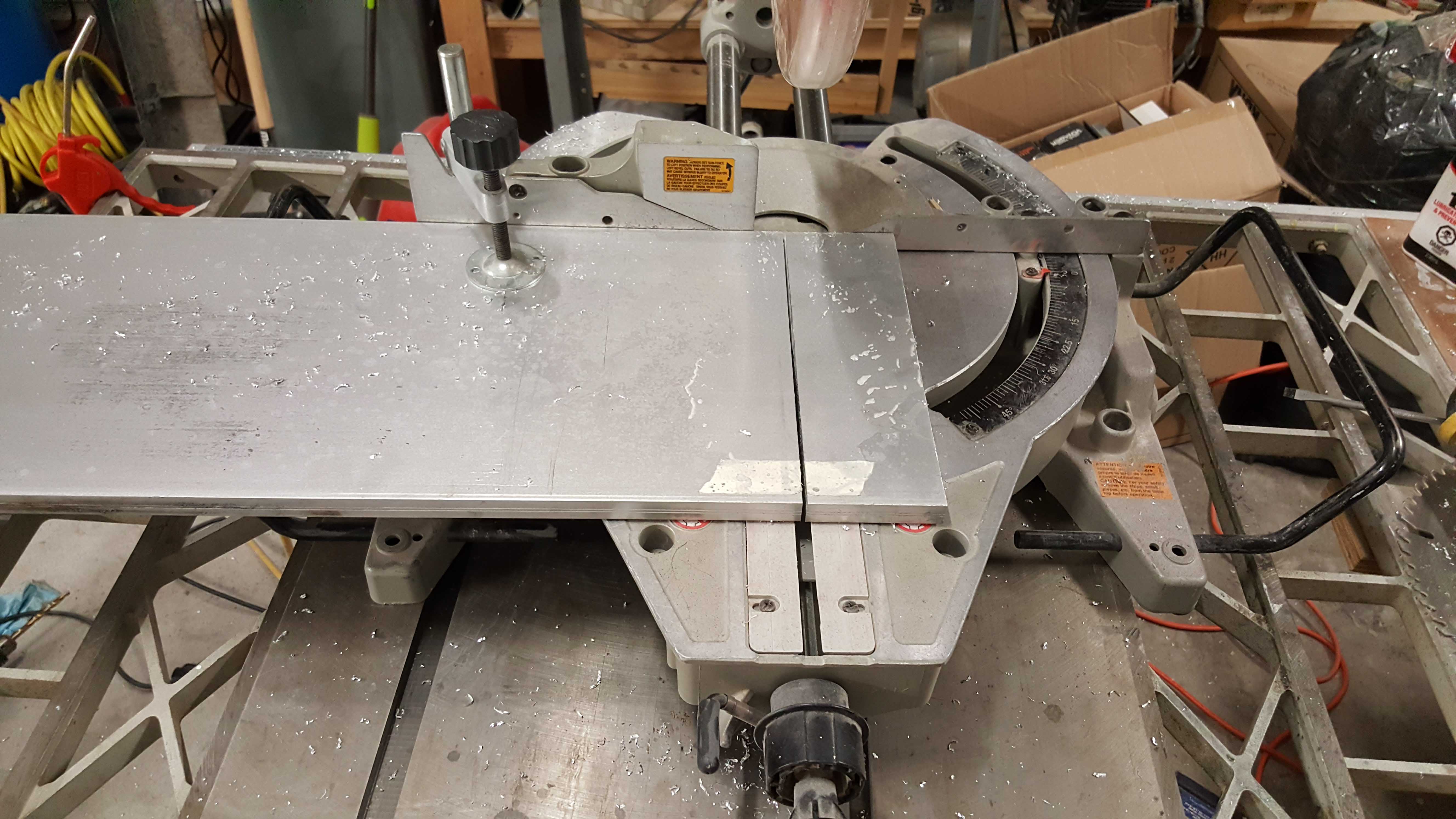

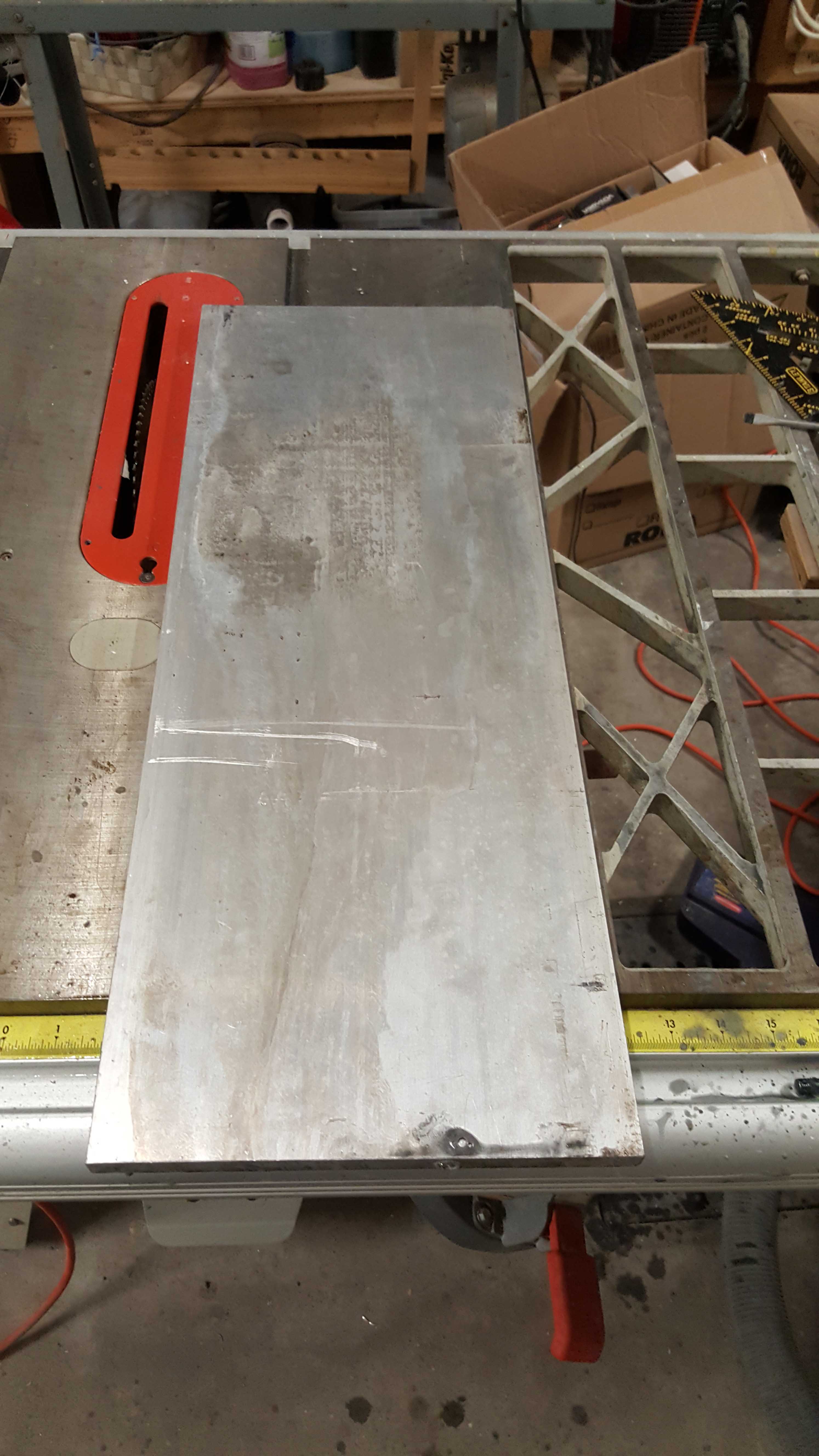

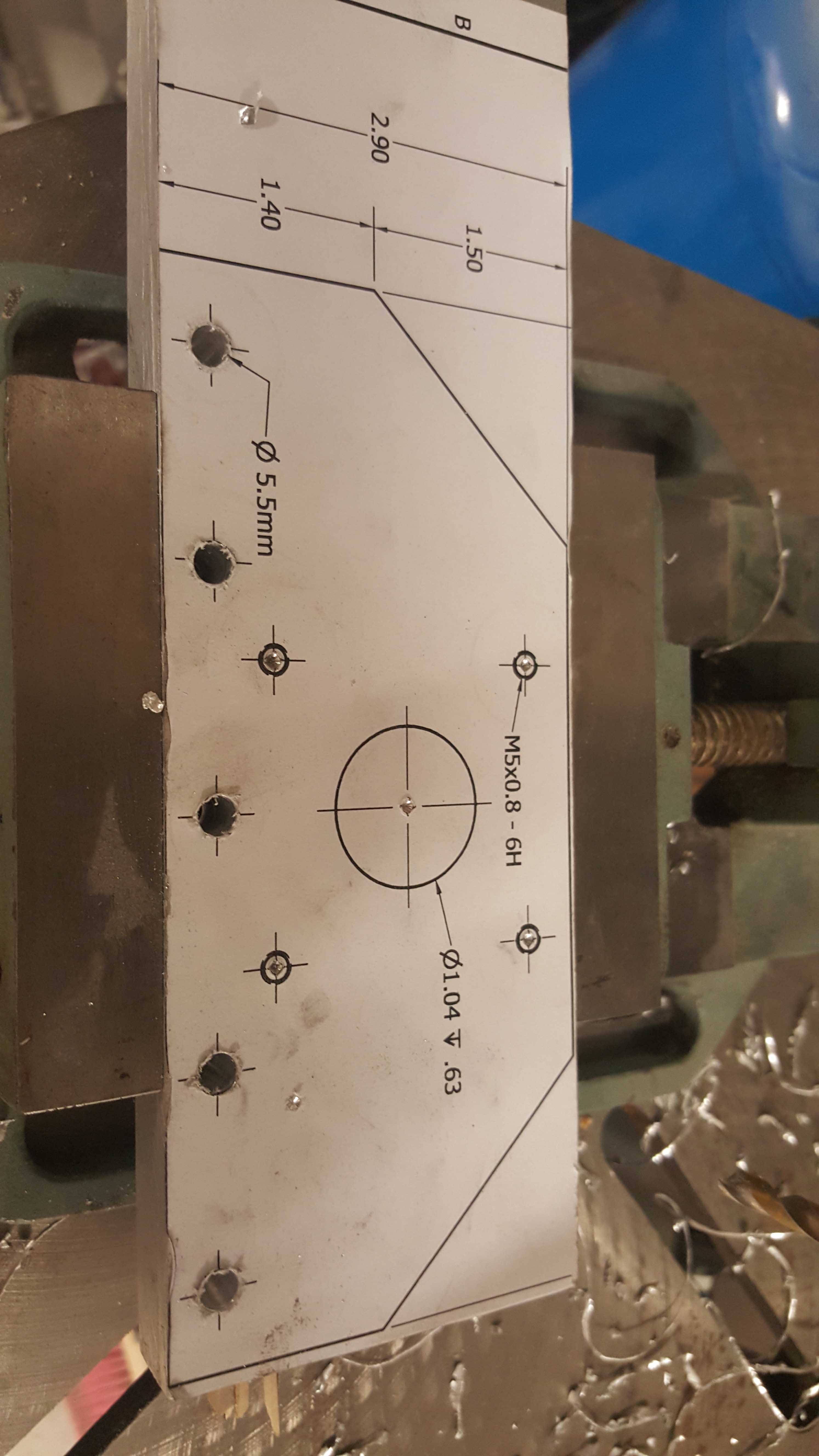

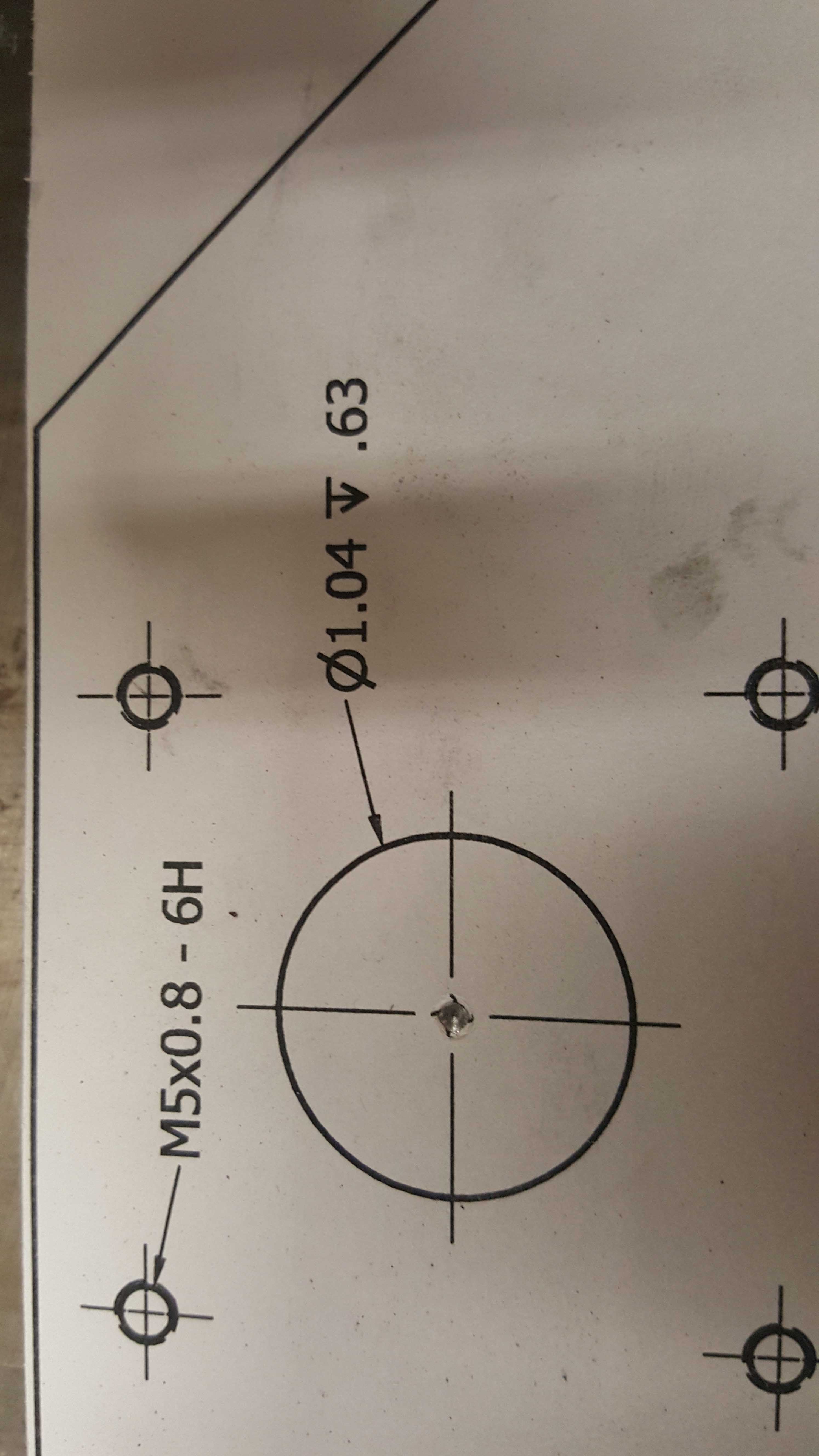

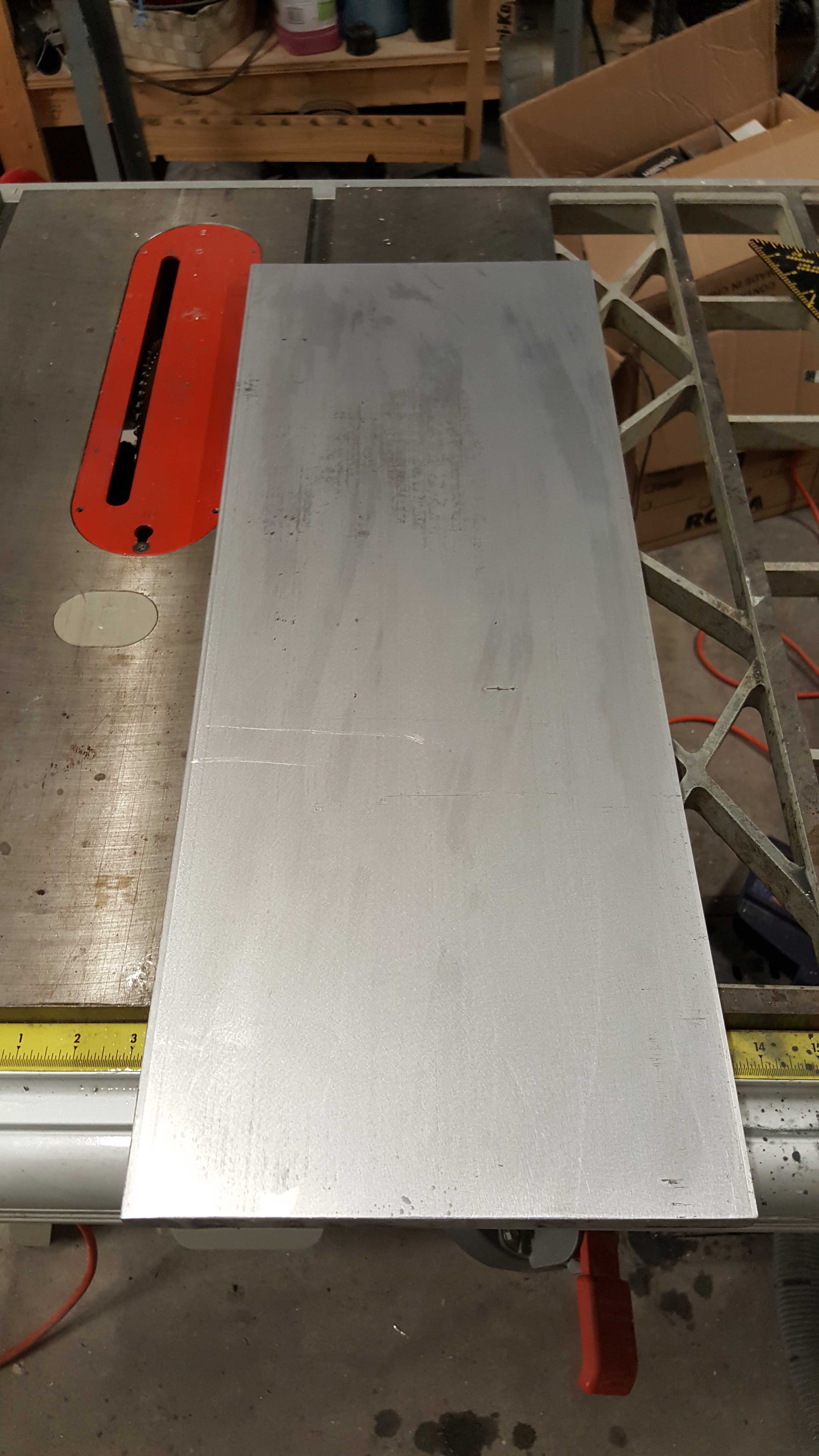

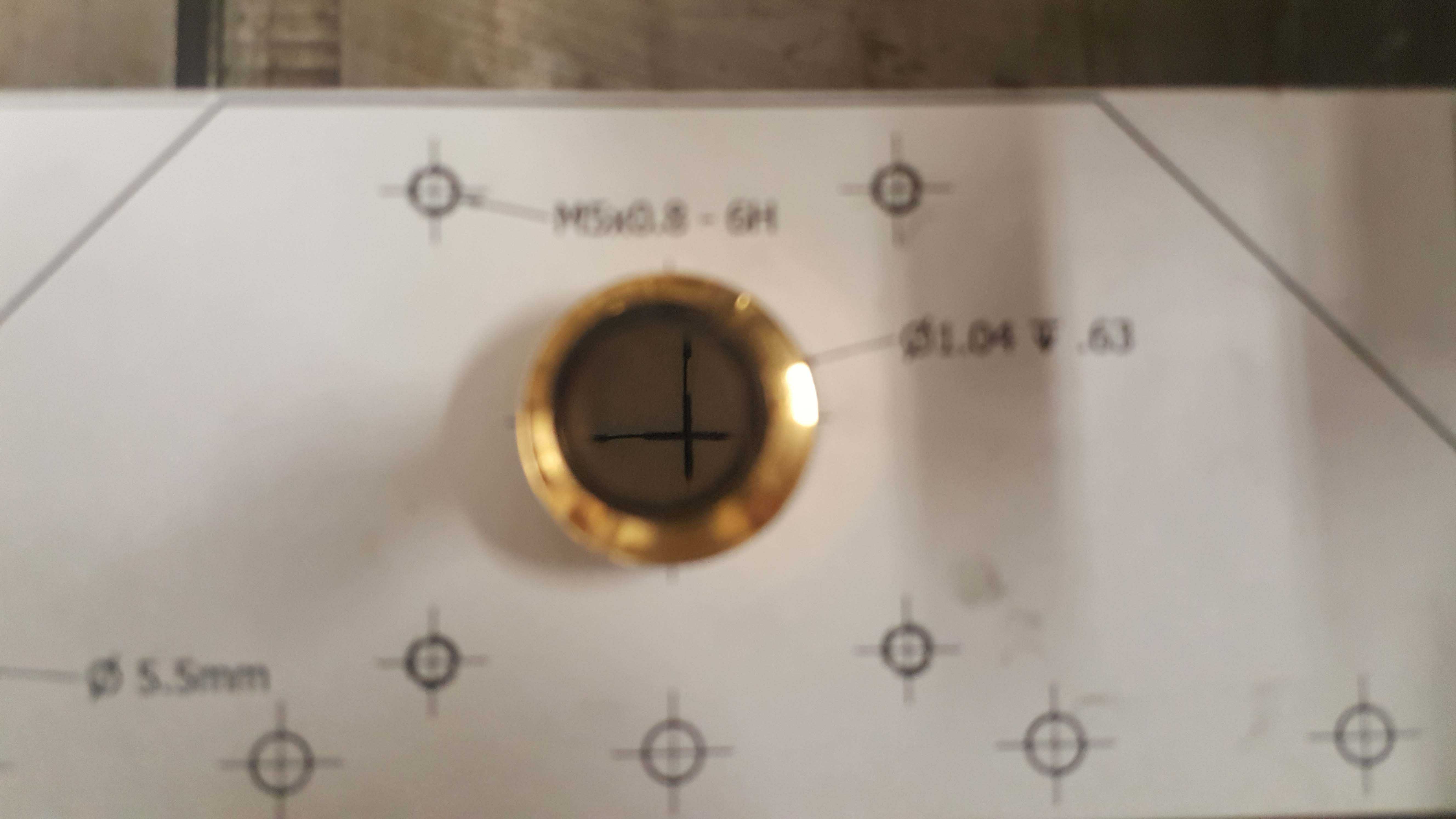

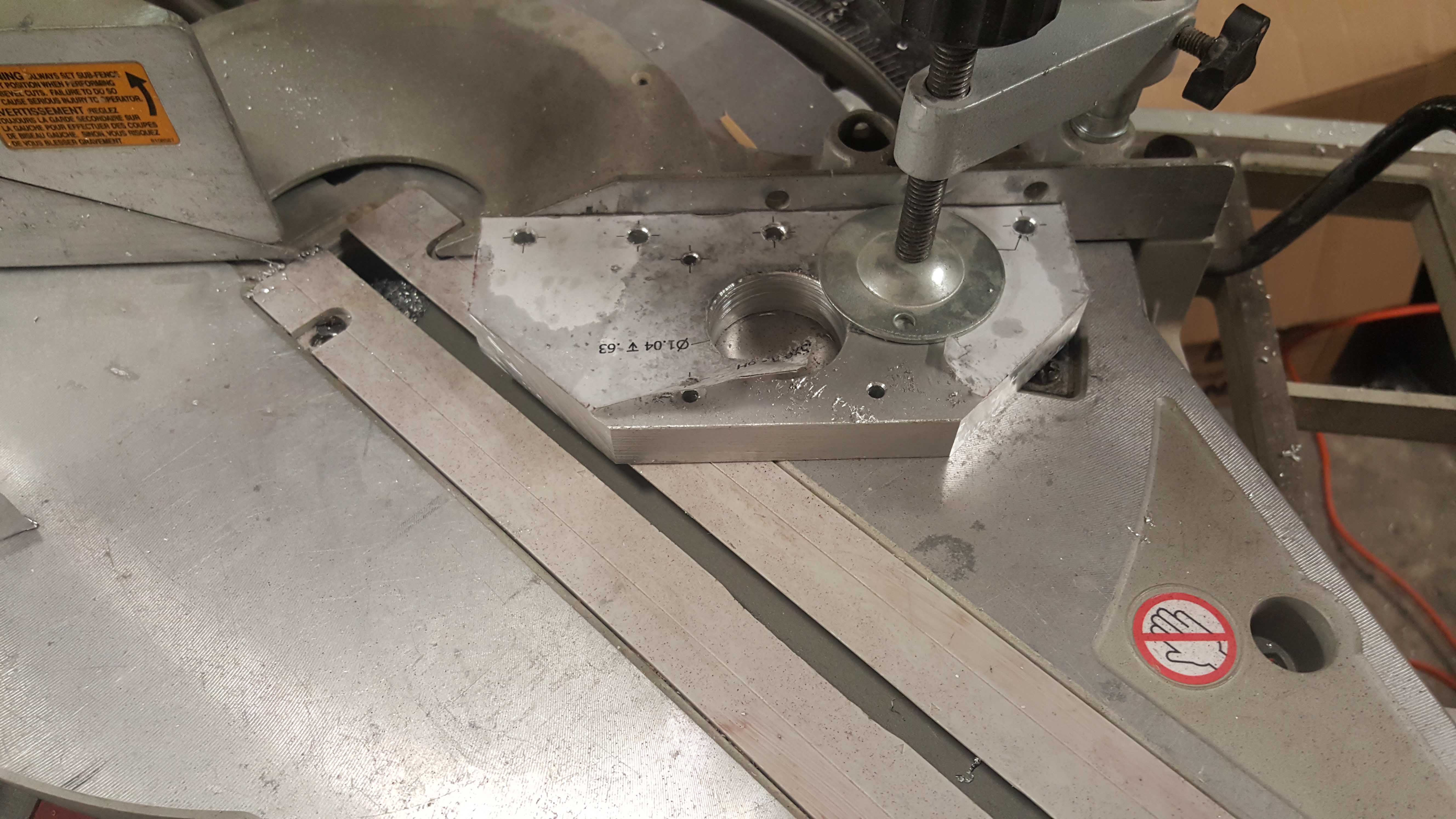

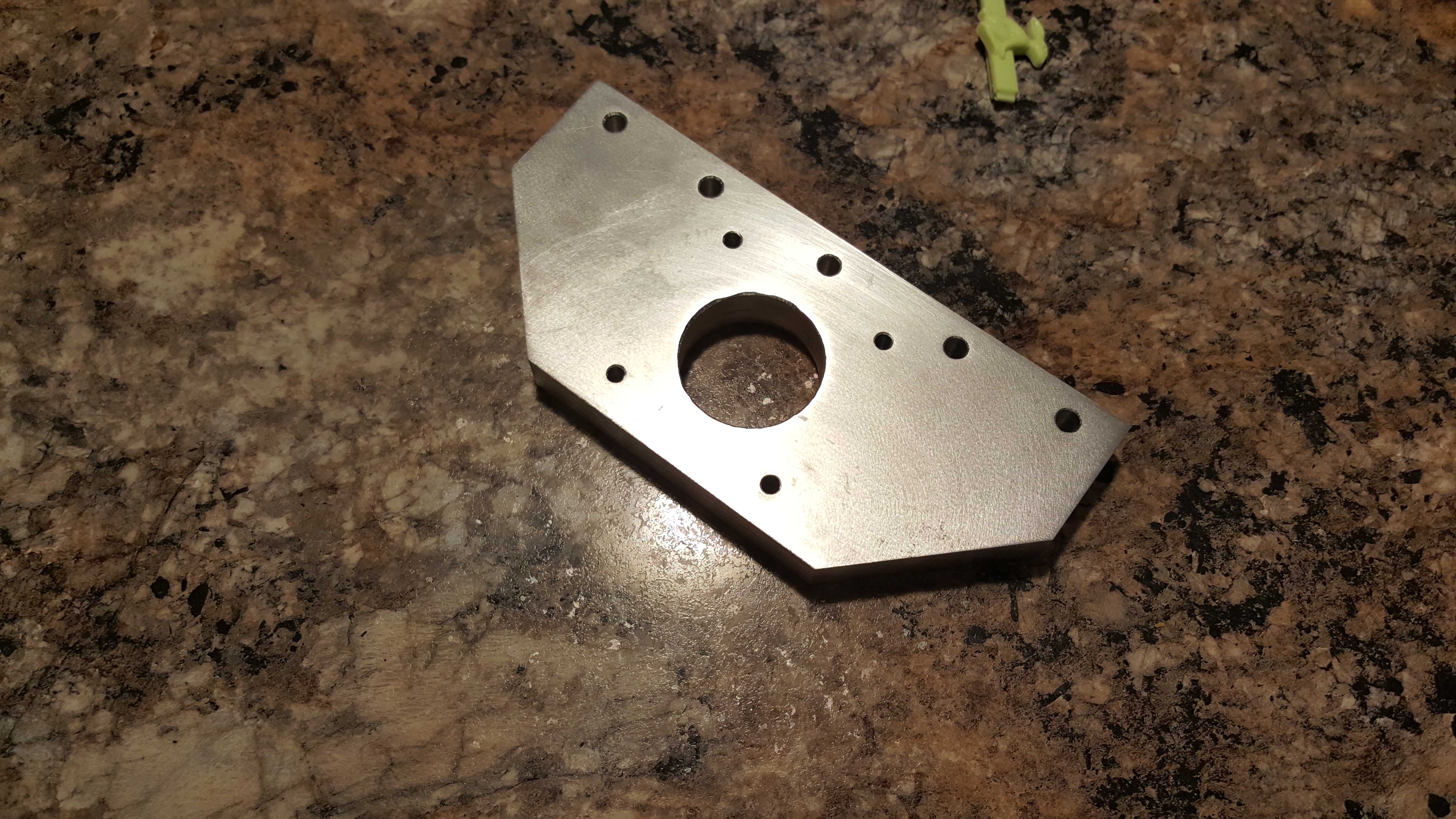

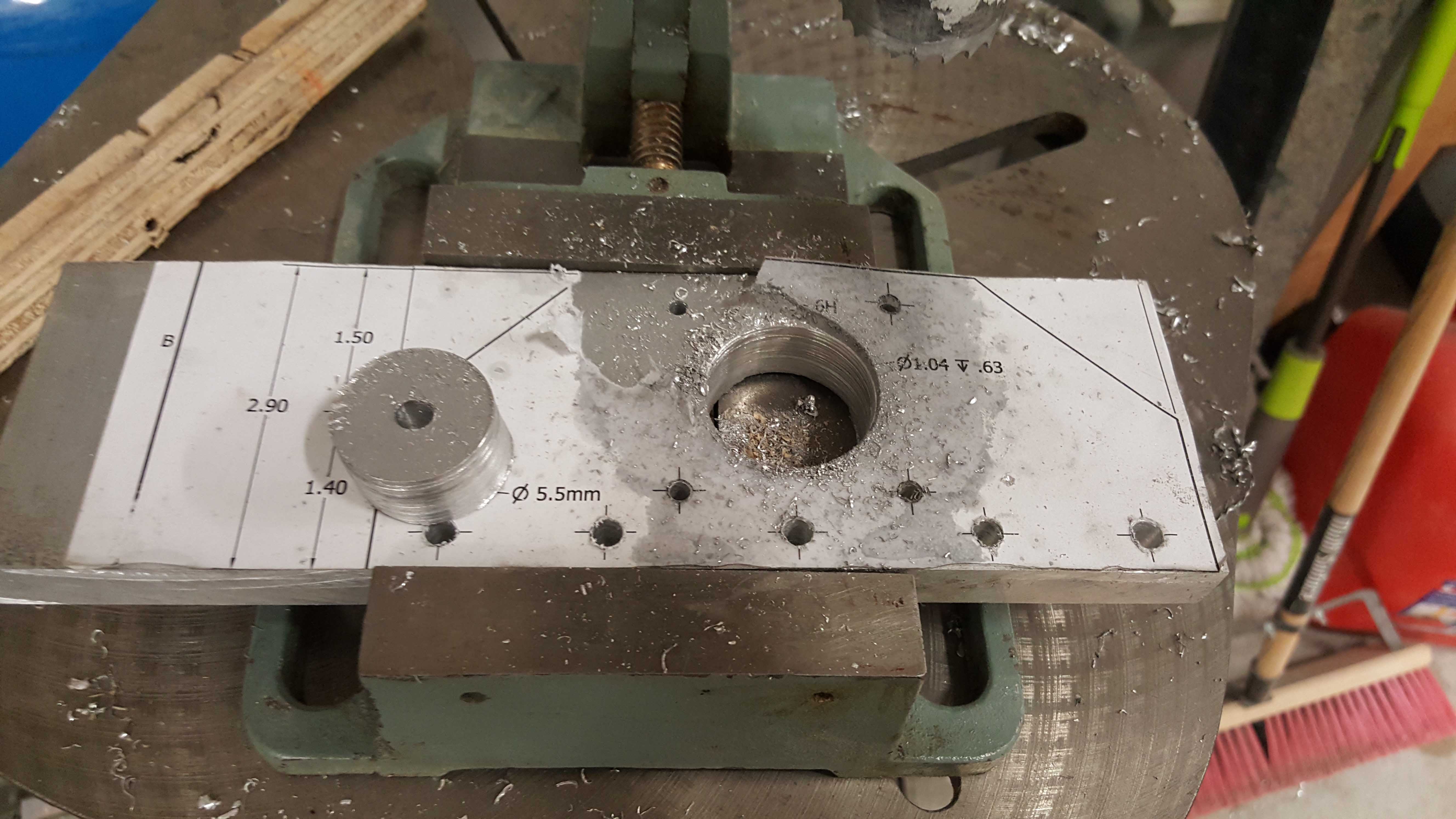

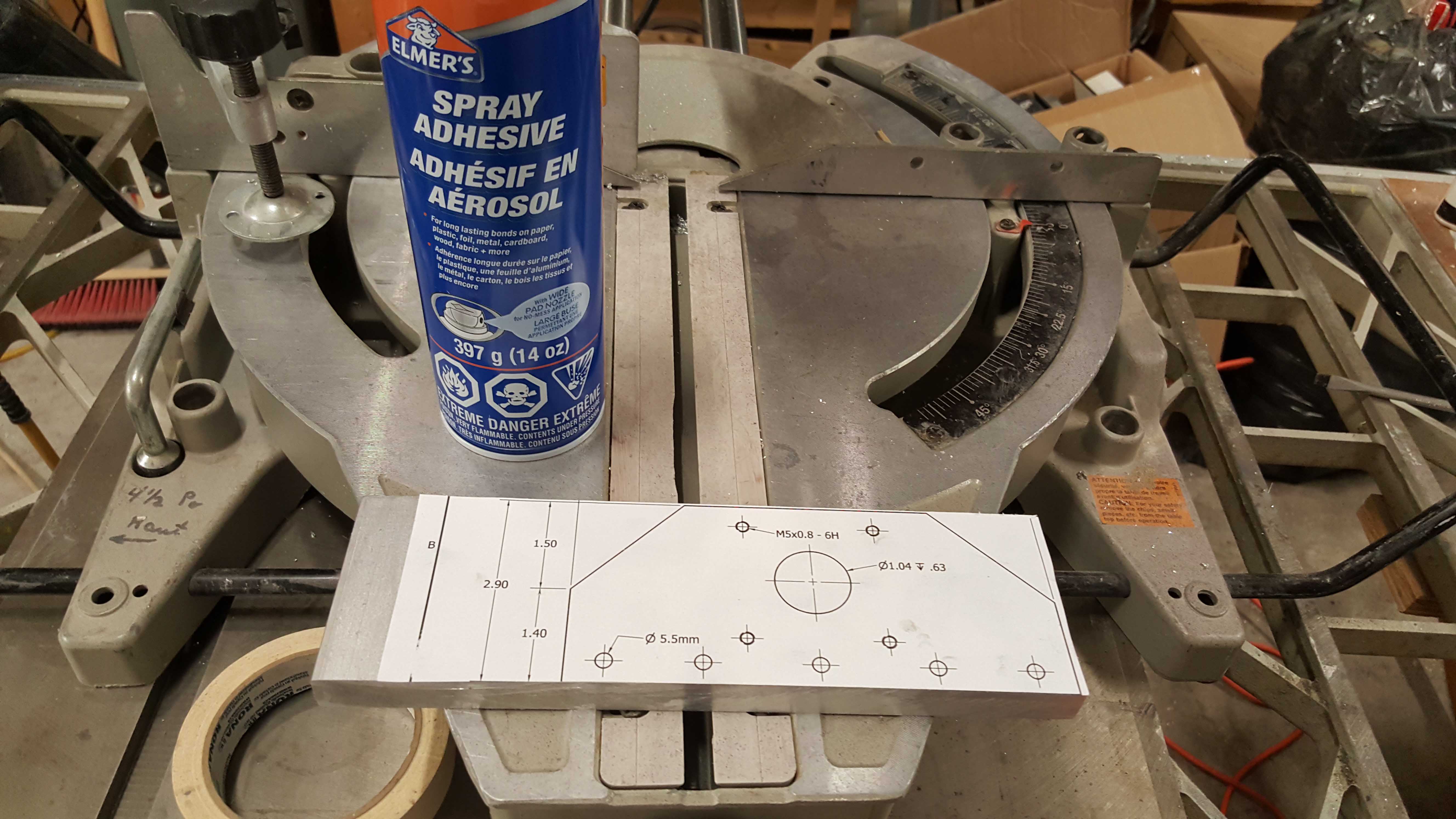

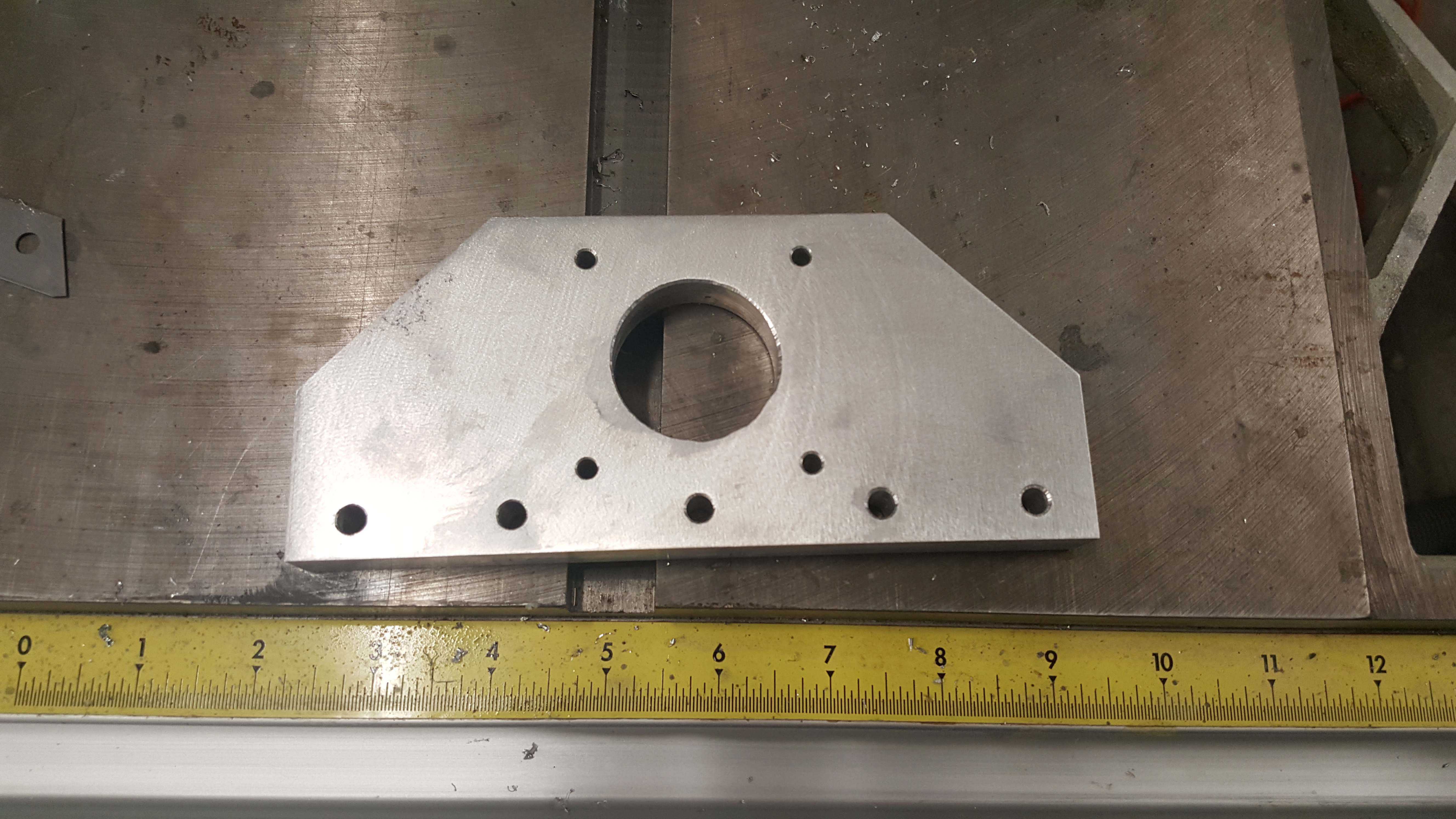

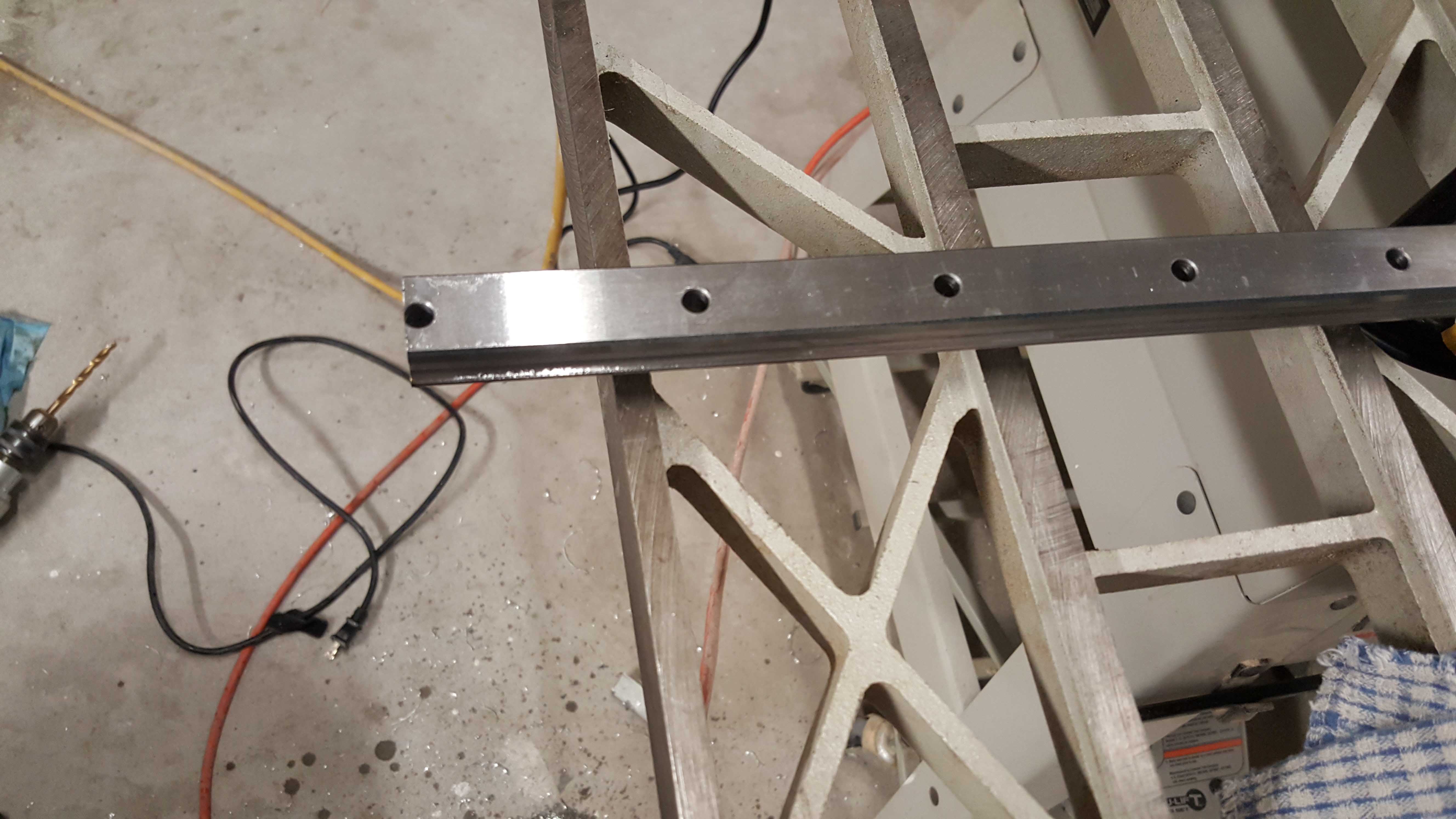

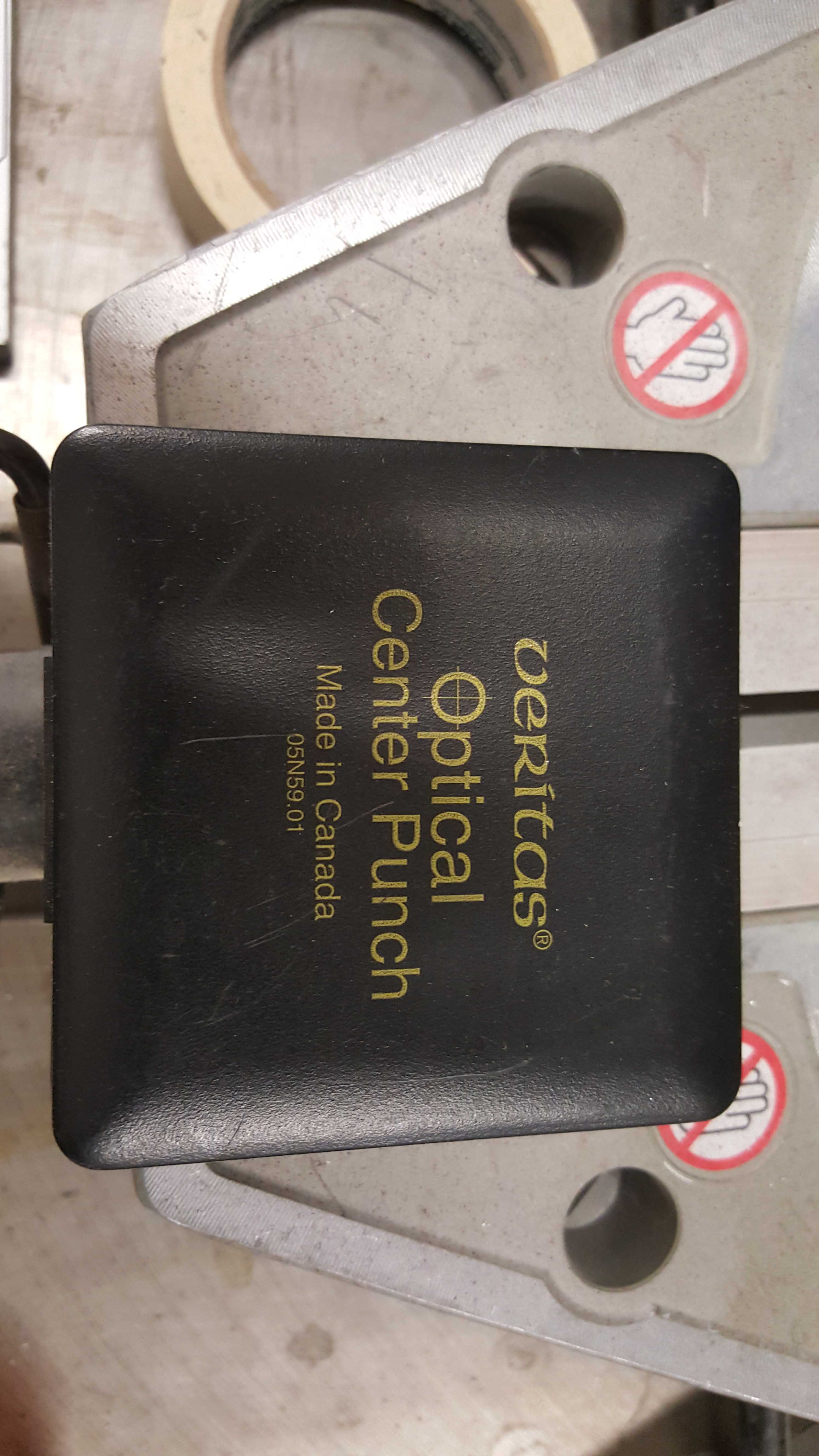

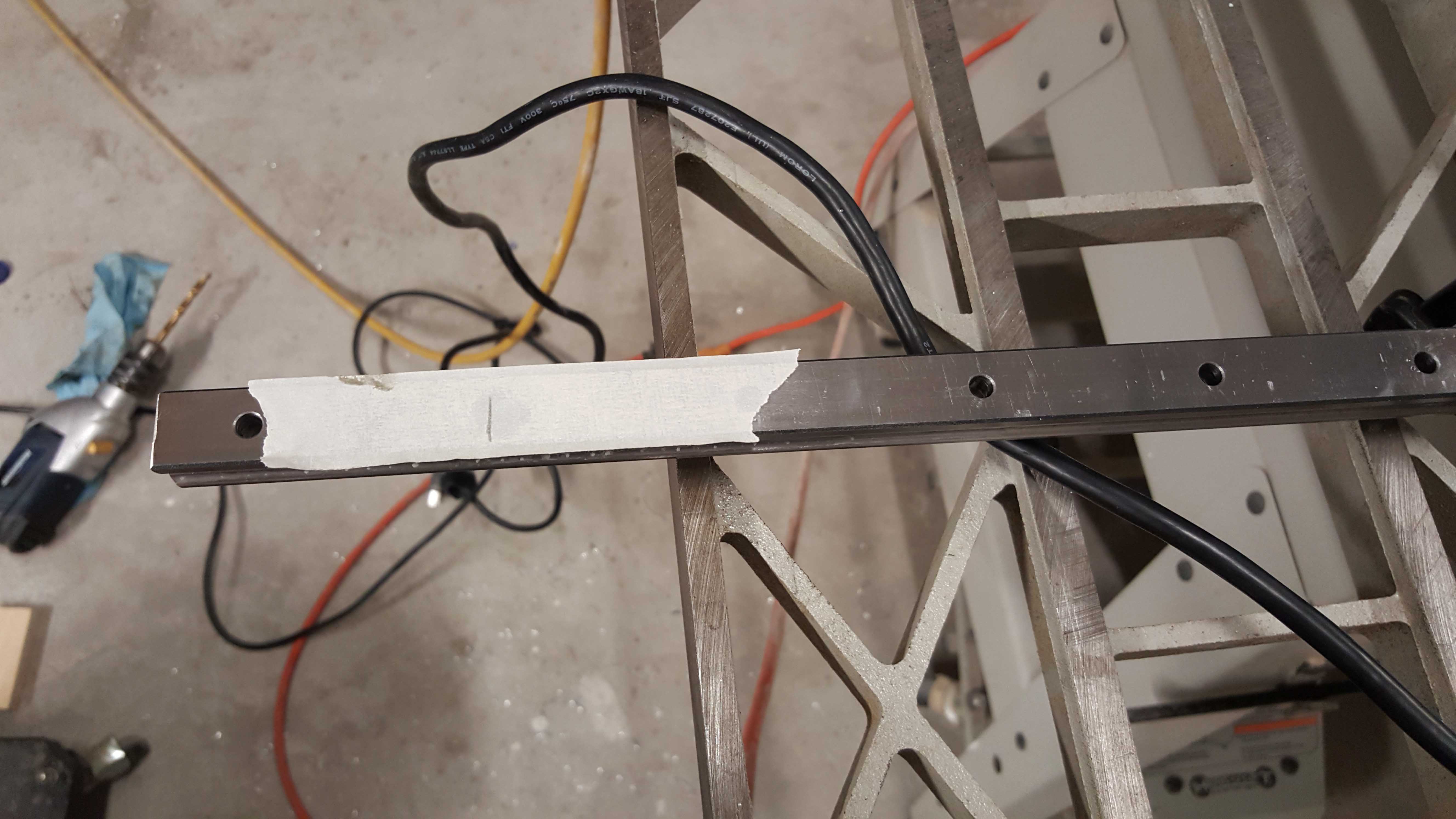

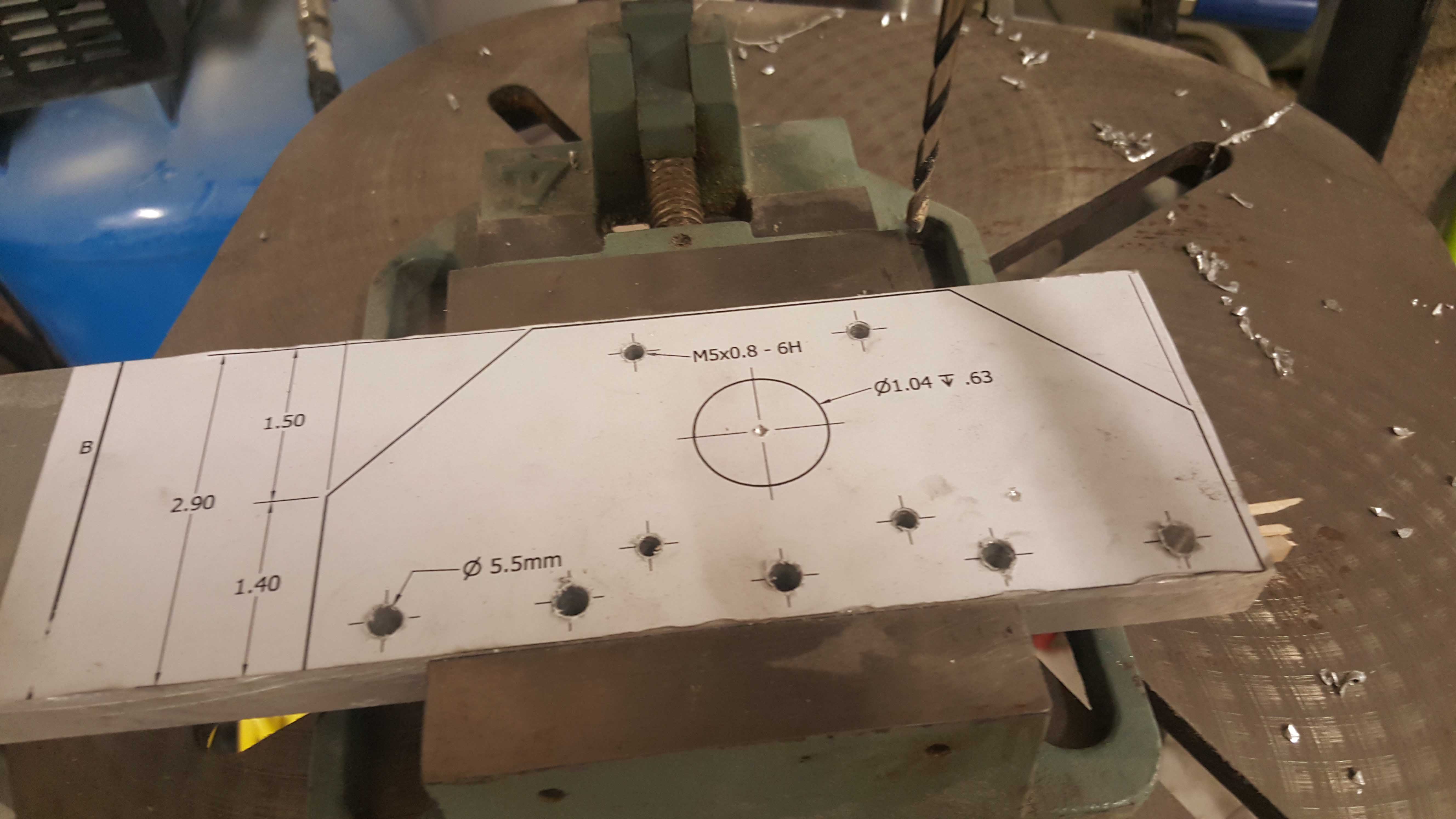

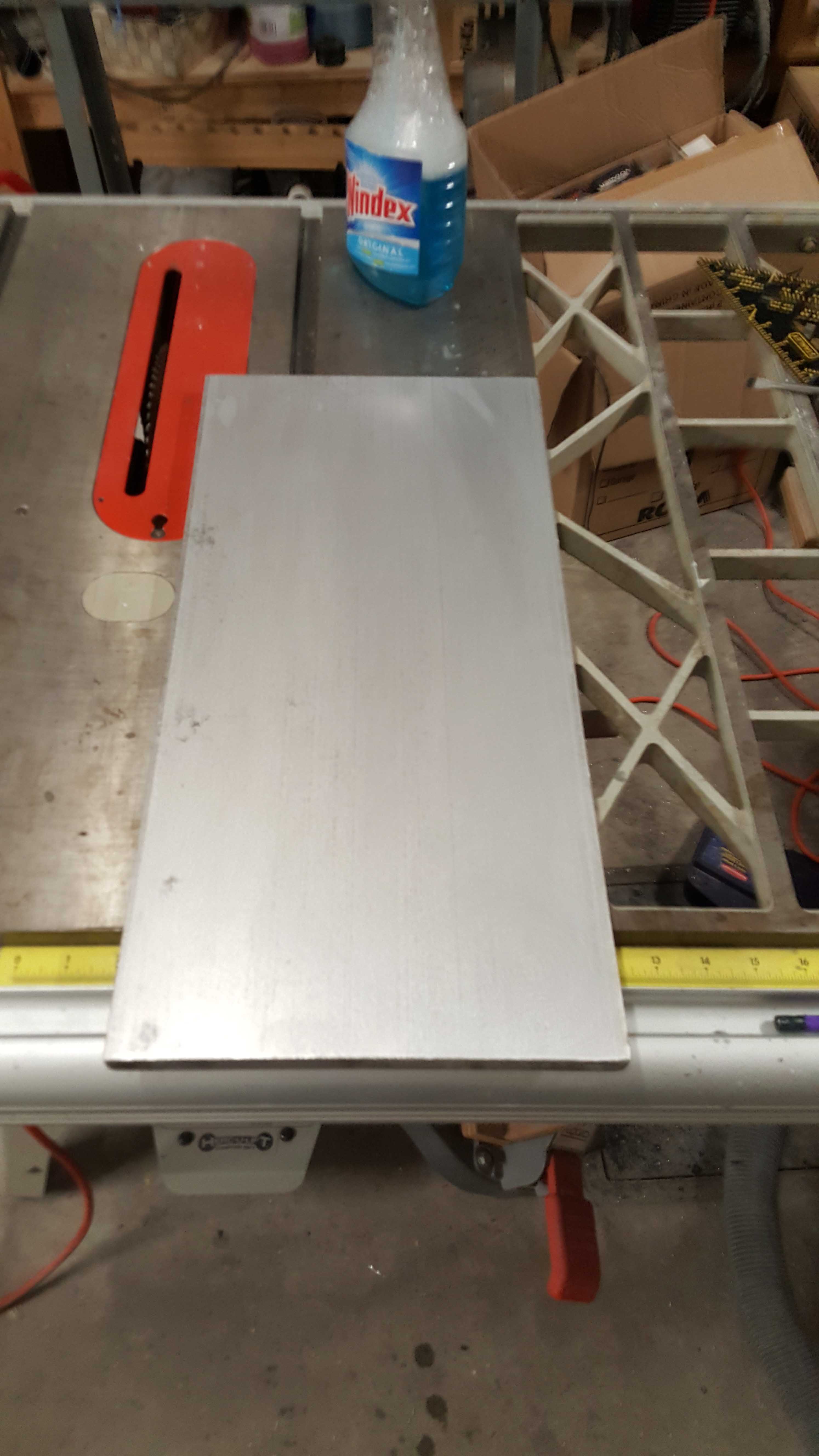

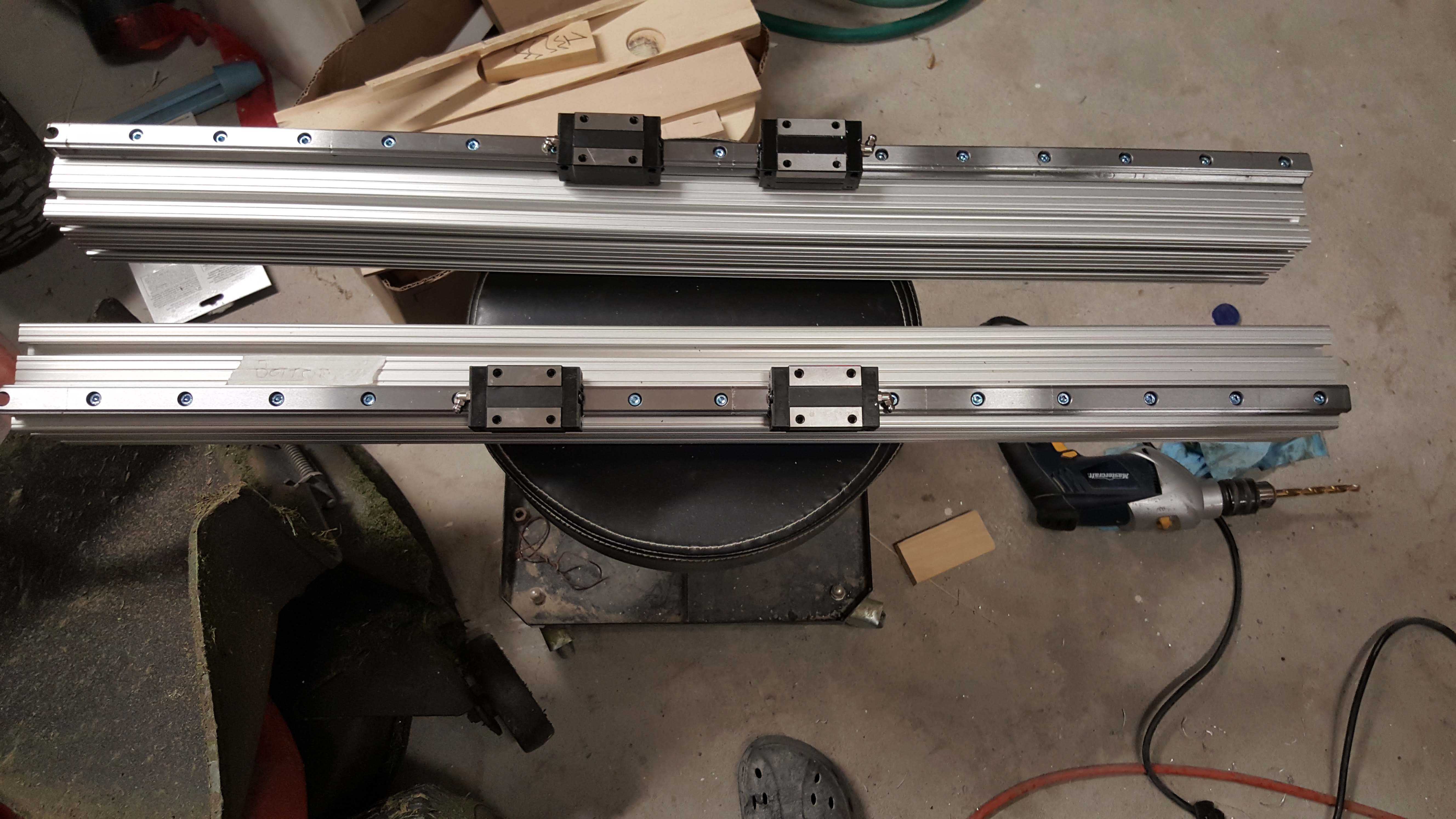

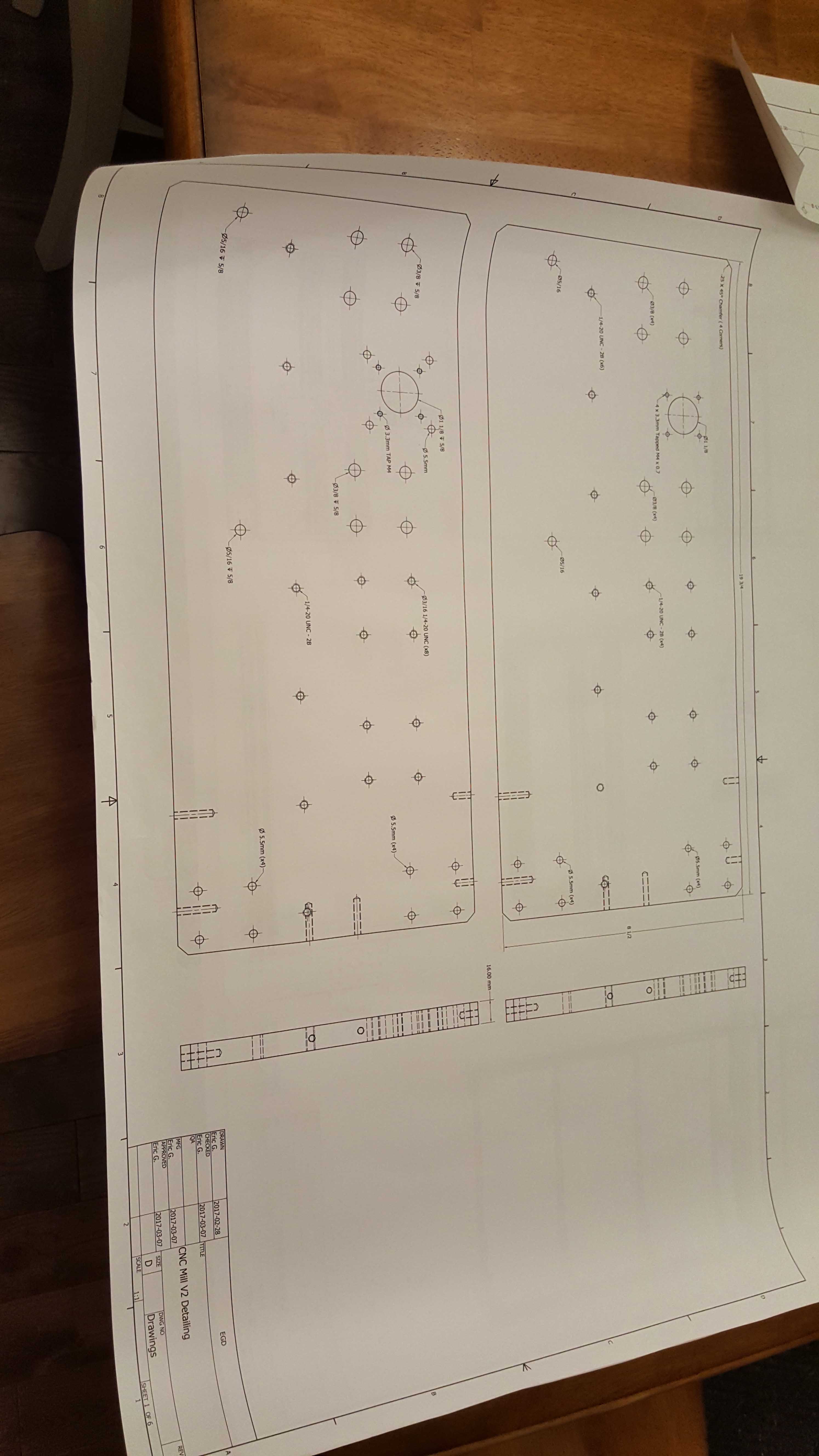

Last night I cut the X rails to length and assembled them on the 3″ x 3″ X Beams.  Then I proceeded to cut / drill /tap the Z Top plate, which is the smallest plate and thus was a good candidate in case of a screw up!  This was the first time I used my Optical Center Punch which I HIGHLY recommend for any drill job requiring precision.  I will try to put more explanations / details later
